AXOR Urquiola

Single lever basin mixer 280 for wash bowls with waste set

Single lever basin mixer 280 for wash bowls with waste set
Single lever basin mixer 280 for wash bowls with waste set
Finish Chrome

Art. no. 11035000

Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products Product added Product saved for 30 daysTo the Product Comparison The product could not be saved.
Please try again.
Find a specialist dealer Details
Special product features

Innovative technologies

More pleasure, more efficiency
AirPower
AirPower

More pleasure, more efficiency

Products with this shower technology combined water with air to pamper you with more voluminous, lighter and softer water droplets on your skin. For greater showering pleasure with water efficiency.

Excellent user comfort
ComfortZone
ComfortZone

Excellent user comfort

Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.

Save water, protect the climate
EcoSmart
EcoSmart

Save water, protect the climate

Hansgrohe mixers and showers, which are fitted with EcoSmart technology, require up to 60% less water than conventional products – without any loss of comfort. This means you can reduce your water and energy costs and conserve valuable resources.

Fast anti-limescale function
QuickClean
QuickClean

Fast anti-limescale function

Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon nubs make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.

Trust in highest quality

5 years warranty

Produktalternativen

Ähnliche Produkte

Single lever basin mixer 130 with pop-up waste set
AXOR Urquiola

Single lever basin mixer 130 with pop-up waste set
Single lever basin mixer 130 with waste set
AXOR Urquiola

Single lever basin mixer 130 with waste set
2-handle basin mixer 120 with pop-up waste set
AXOR Urquiola

2-handle basin mixer 120 with pop-up waste set
Single lever basin mixer 110 for hand washbasins with pop-up waste set
AXOR Urquiola

Single lever basin mixer 110 for hand washbasins with pop-up waste set
Single lever basin mixer for concealed installation wall-mounted with spout 200 mm
AXOR Urquiola

Single lever basin mixer for concealed installation wall-mounted with spout 200 mm
3-hole basin mixer 50 with plate and pop-up waste set
AXOR Urquiola

3-hole basin mixer 50 with plate and pop-up waste set
3-hole basin mixer 50 with escutcheons and pop-up waste set
AXOR Urquiola

3-hole basin mixer 50 with escutcheons and pop-up waste set
3-hole basin mixer for concealed installation wall-mounted with spout 168 mm
AXOR Urquiola

3-hole basin mixer for concealed installation wall-mounted with spout 168 mm
3-hole basin mixer for concealed installation wall-mounted with spout 228 mm
AXOR Urquiola

3-hole basin mixer for concealed installation wall-mounted with spout 228 mm
Single lever basin mixer 100 with lever handle and pop-up waste set
AXOR Starck

Single lever basin mixer 100 with lever handle and pop-up waste set
Single lever basin mixer 100 with lever handle and waste set
AXOR Starck

Single lever basin mixer 100 with lever handle and waste set
Passende Produkte

Das könnte Ihnen auch gefallen

Single lever bidet mixer with pop-up waste set
AXOR Urquiola

Single lever bidet mixer with pop-up waste set
Wash bowl 624/408
AXOR Urquiola

Wash bowl 624/408
Wash bowl 511
AXOR Urquiola

Wash bowl 511
Wash basin 624/399 wall-mounted
AXOR Urquiola

Wash basin 624/399 wall-mounted
Single lever bath mixer for exposed installation
AXOR Urquiola

Single lever bath mixer for exposed installation
Bath thermostat floor-standing
AXOR Urquiola

Bath thermostat floor-standing
Single lever bath mixer for concealed installation
AXOR Urquiola

Single lever bath mixer for concealed installation
Bath spout
AXOR Urquiola

Bath spout
3-hole rim mounted bath mixer
AXOR Urquiola

3-hole rim mounted bath mixer
Bath tub 1,800/600
AXOR Urquiola

Bath tub 1,800/600
4-hole rim mounted bath mixer
AXOR Urquiola

4-hole rim mounted bath mixer

Article Details

  • consists of: single lever basin mixer, waste set
  • ComfortZone 280
  • projection 198 mm
  • normal spray
  • flow rate at 3 bar: 5 l/min
  • ceramic cartridge
  • temperature limitation adjustable
  • suitable for continuous flow water heaters
  • non-closing waste set
  • connection type: G ⅜ connections
  • connection dimension: DN15
  • handle position on the side: top-side at the spout (generally suitable for wash bowls)

Downloads

Product data sheet (PDF)
Planning data
Technical Drawings
Manuals

Installation Information

Find plumber Assembly instruction (Mixer)  PDF, 5.1 MB

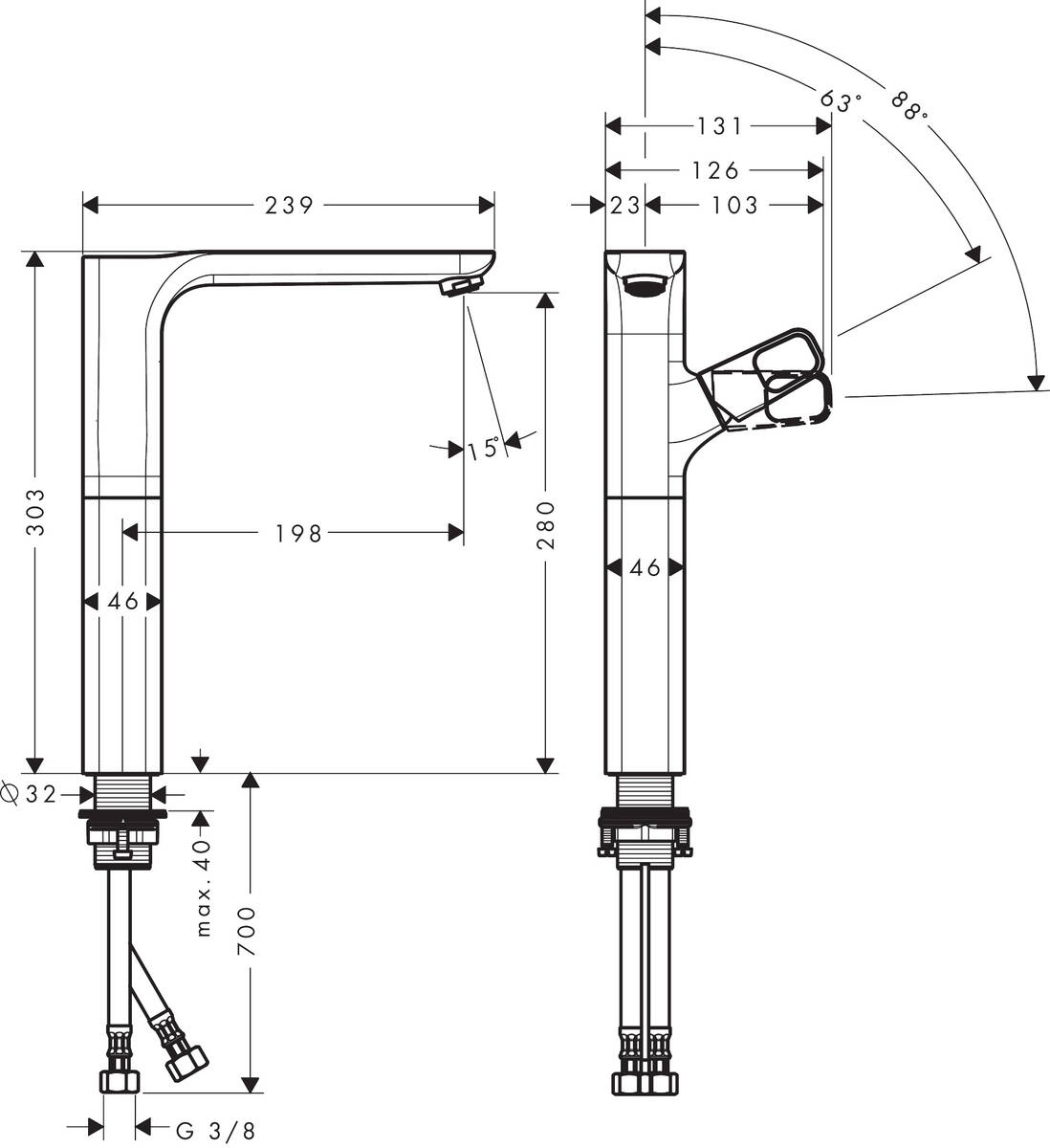

Measure Drawing

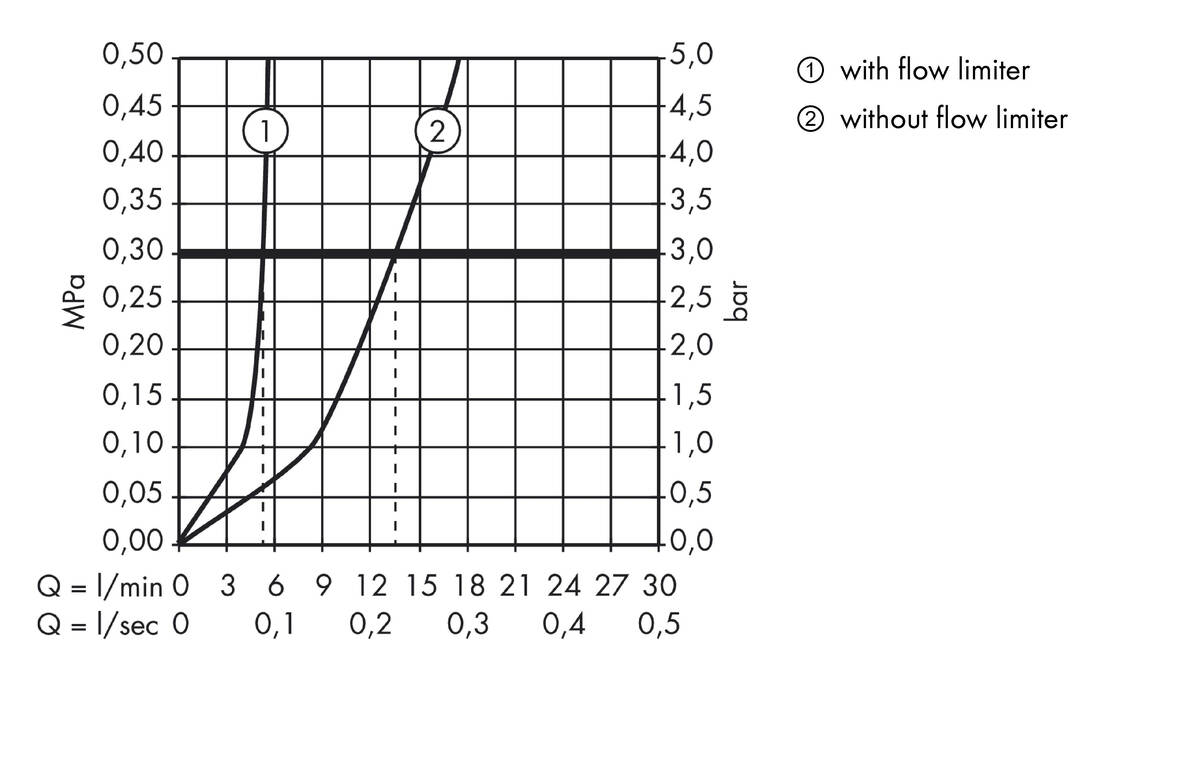

Flow Chart

Spare parts for build year 11/11

View older models in the spare parts catalogue

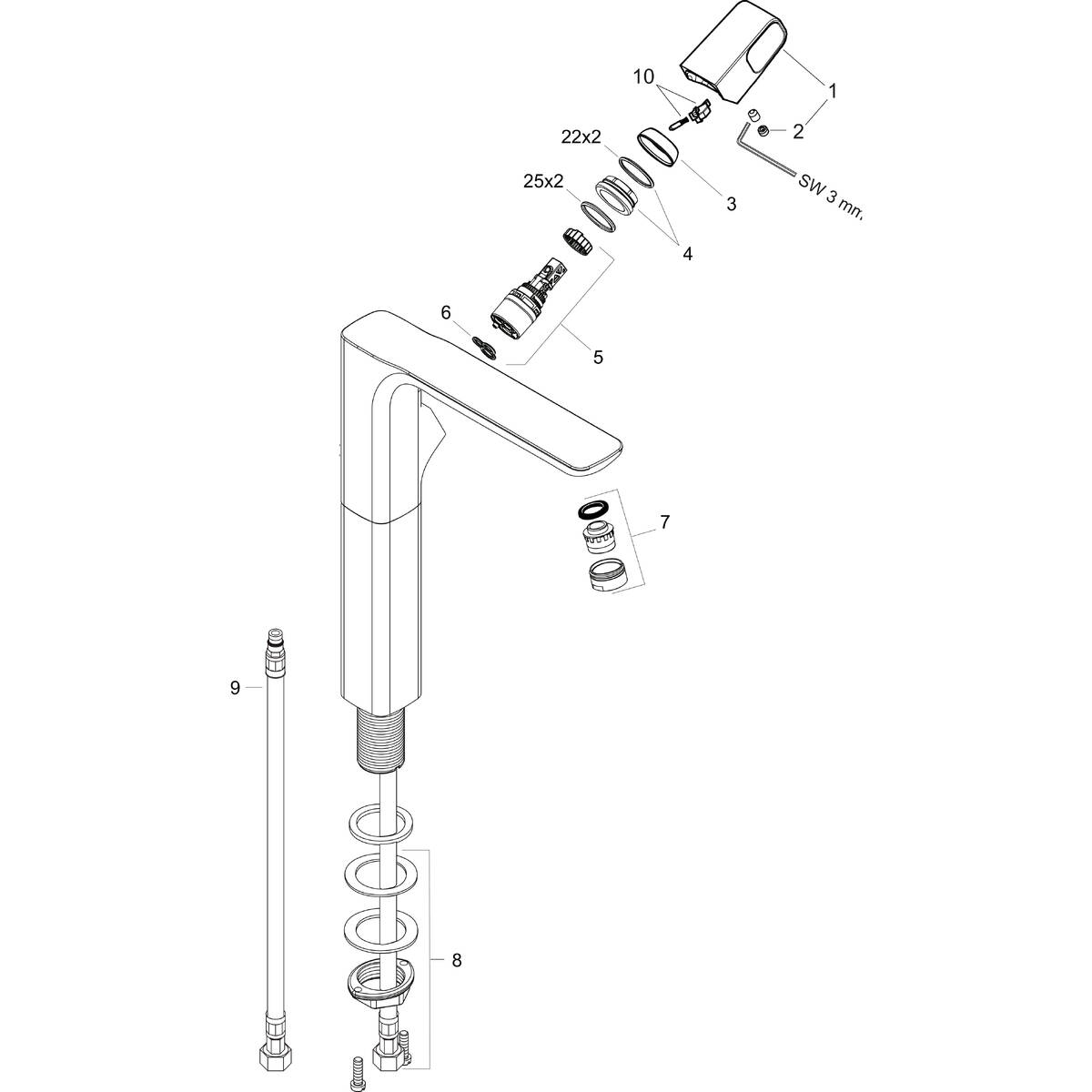

Spare parts for products 11035000
Spare parts for products 11035000
Item no. DescriptionArticle no.
a fixation extension 35 mm13898000
c aerator M24x1 (4,5 l/min)92877000
d aerator swivelling M24x1 (5 l/min)95928000
b aerator M24x1 (3,5 l/min)92508000
1 handle11093000
2 screw cover96338000
3 flange98863000
4 nut95178000
5 cartridge, assy97685000
6 seal98865000
7 aerator M24x1 (5 l/min)13185000
8 fixing set (Ø 32)13961000
9 connection hose 900 mm M8x0,75 G3/896316XXX
10 spring with sleeve92462000
More information in the spare parts catalogue

Optionales Zubehör

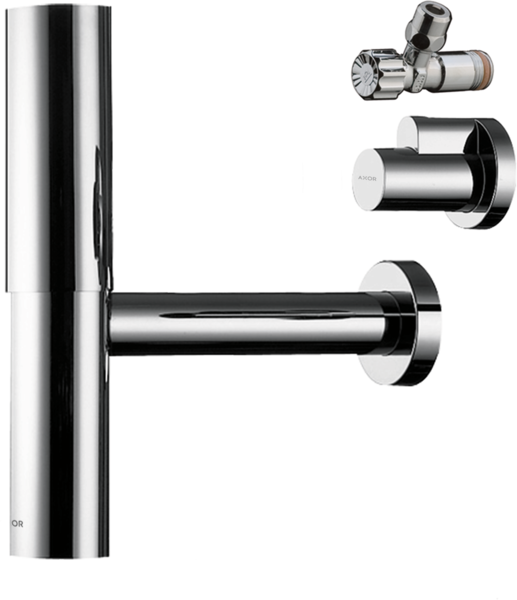

Design trap set Flowstar

Design trap set Flowstar
