AXOR Citterio

Single lever kitchen mixer 230 with pull-out spout, sBox

Single lever kitchen mixer 230 with pull-out spout
Single lever kitchen mixer 230 with pull-out spout
NEW
Finish Chrome

Art. no. 39862007

Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products Product added Product saved for 30 daysTo the Product Comparison The product could not be saved.
Please try again.
Find a specialist dealer Details
Special product features

Innovative technologies

More pleasure, more efficiency
AirPower
AirPower

More pleasure, more efficiency

Products with this shower technology combined water with air to pamper you with more voluminous, lighter and softer water droplets on your skin. For greater showering pleasure with water efficiency.

Excellent user comfort
ComfortZone
ComfortZone

Excellent user comfort

Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.

Fast anti-limescale function
QuickClean
QuickClean

Fast anti-limescale function

Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon nubs make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.

Select: convenience at the touch of a button
Select_Kitchen
Select_Kitchen

Select: convenience at the touch of a button

The Select function can be used to stop and start the water flow at your kitchen tap conveniently at the touch of a button. For precise, ergonomic water control and easier housework.

Trust in highest quality

5 years warranty

Produktalternativen

Ähnliche Produkte

2-hole single lever kitchen mixer 240 with swivel spout Eco
AXOR Citterio

2-hole single lever kitchen mixer 240 with swivel spout Eco
2-hole single lever kitchen mixer 220 with pull-out spray Eco
AXOR Citterio

2-hole single lever kitchen mixer 220 with pull-out spray Eco
Single lever kitchen mixer 250 with pull-out spray Eco
AXOR Citterio

Single lever kitchen mixer 250 with pull-out spray Eco
Single lever kitchen mixer 250 with pull-out spray
AXOR Citterio

Single lever kitchen mixer 250 with pull-out spray
Single lever kitchen mixer 230 Semi-Pro
AXOR Citterio

Single lever kitchen mixer 230 Semi-Pro
Single lever kitchen mixer 230 Semi-Pro Eco
AXOR Citterio

Single lever kitchen mixer 230 Semi-Pro Eco
Single lever kitchen mixer 260 with swivel spout
AXOR Citterio

Single lever kitchen mixer 260 with swivel spout
Single lever kitchen mixer 260 with swivel spout Eco
AXOR Citterio

Single lever kitchen mixer 260 with swivel spout Eco
Single lever kitchen mixer Select 230 with swivel spout
AXOR Citterio

Single lever kitchen mixer Select 230 with swivel spout
Single lever kitchen mixer Select 230 with pull-out spout
AXOR Citterio

Single lever kitchen mixer Select 230 with pull-out spout
Single lever kitchen mixer Select 230 2jet with pull-out spray and sBox
AXOR Citterio

Single lever kitchen mixer Select 230 2jet with pull-out spray and sBox
Passende Produkte

Das könnte Ihnen auch gefallen

Wall plate square
AXOR Citterio

Wall plate square
Shower bar 0.90 m
AXOR Citterio

Shower bar 0.90 m
Shower set 0.90 m with hand shower 120 3jet
AXOR Citterio

Shower set 0.90 m with hand shower 120 3jet
Overhead shower 180 1jet
AXOR Citterio

Overhead shower 180 1jet
Single lever basin mixer 110 with pin handle and pop-up waste set
AXOR Citterio

Single lever basin mixer 110 with pin handle and pop-up waste set
Single lever basin mixer 80 with pin handle for hand washbasins with pop-up waste set
AXOR Citterio

Single lever basin mixer 80 with pin handle for hand washbasins with pop-up waste set
Single lever basin mixer 110 with pin handle and waste set
AXOR Citterio

Single lever basin mixer 110 with pin handle and waste set
Single lever basin mixer 280 with pin handle for wash bowls with pop-up waste set
AXOR Citterio

Single lever basin mixer 280 with pin handle for wash bowls with pop-up waste set
Single lever basin mixer 160 with pin handle and pop-up waste set
AXOR Citterio

Single lever basin mixer 160 with pin handle and pop-up waste set
Single lever basin mixer 160 with pin handle and waste set
AXOR Citterio

Single lever basin mixer 160 with pin handle and waste set
Single lever basin mixer 190 with pin handle and pop-up waste set
AXOR Citterio

Single lever basin mixer 190 with pin handle and pop-up waste set

Article Details

  • ComfortZone 220
  • l-spout
  • swivel range adjustable in 2 steps to 110° or 150°
  • normal and spray jet
  • lockable shower spray, spray returns automatically through handle closing
  • Select button for a comfortable start/stop of the water flow
  • MagFit magnetic shower support
  • connection dimension: DN15
  • maximum flow rate at 3 bar: 9 l/min
  • ceramic cartridge
  • connection type: G ⅜ connections
  • integrated non-return valve
  • suitable for continuous flow water heaters
  • sBox for quiet, smooth and protected hose guidance in the cabinet, under the countertop, with extension length up to 76 cm
  • tap hole with Ø 35 mm required

Downloads

Product data sheet (PDF)
Technical Drawings
Manuals

Scope of delivery

  • sBox

Installation Information

Note

Please observe the safety and installation instructions for your product. You can find them in the installation instructions.

Find plumber Assembly instruction (Mixer)  PDF, 16 MB

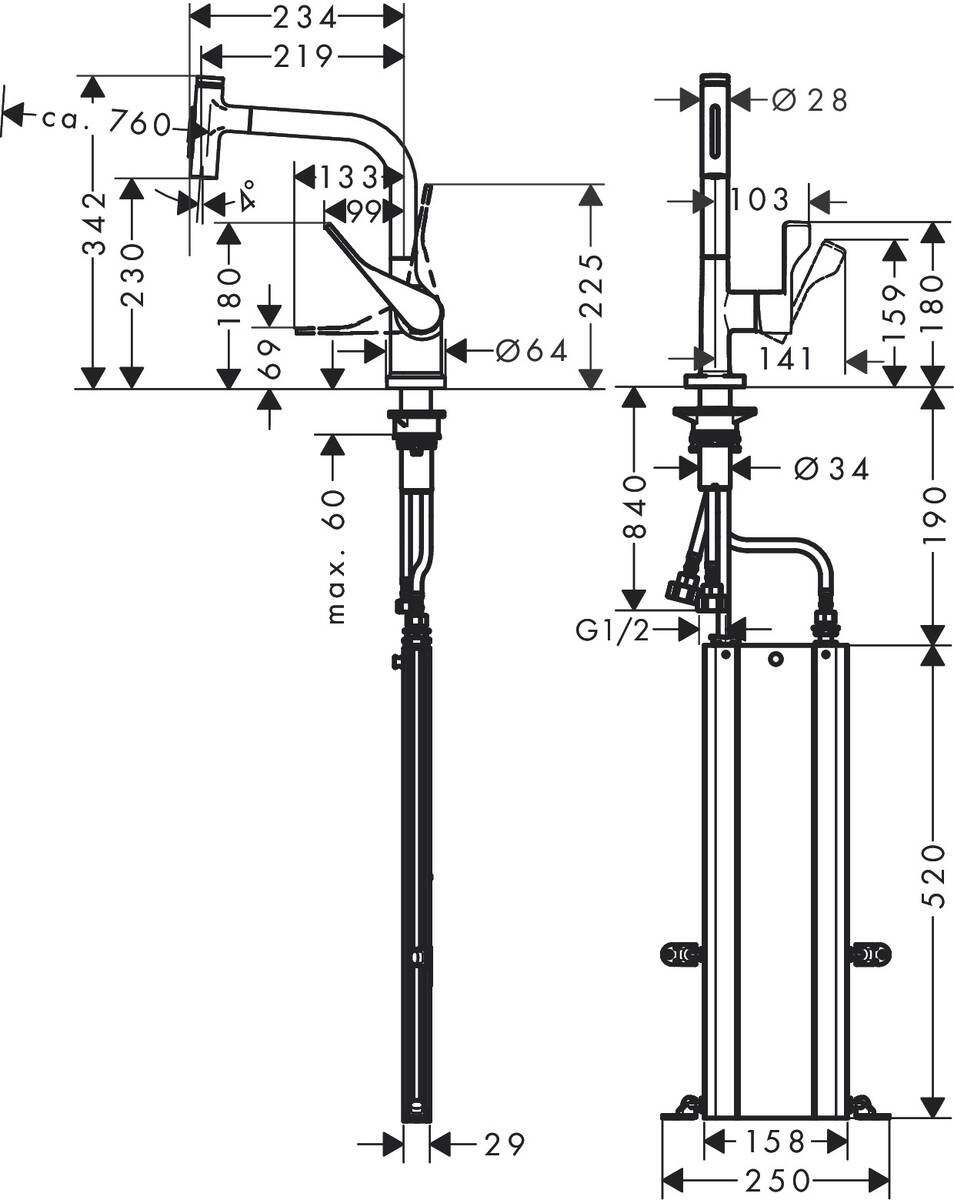

Measure Drawing

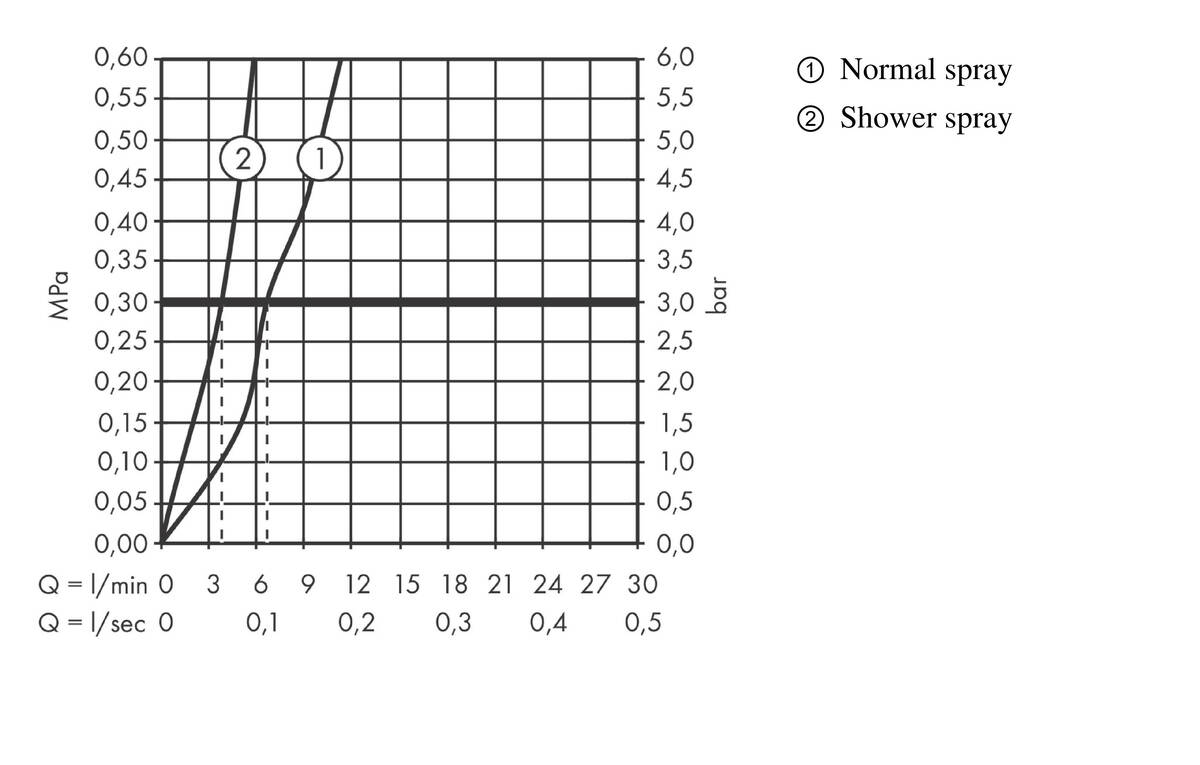

Flow Chart

Spare parts for build year 10/19

View older models in the spare parts catalogue

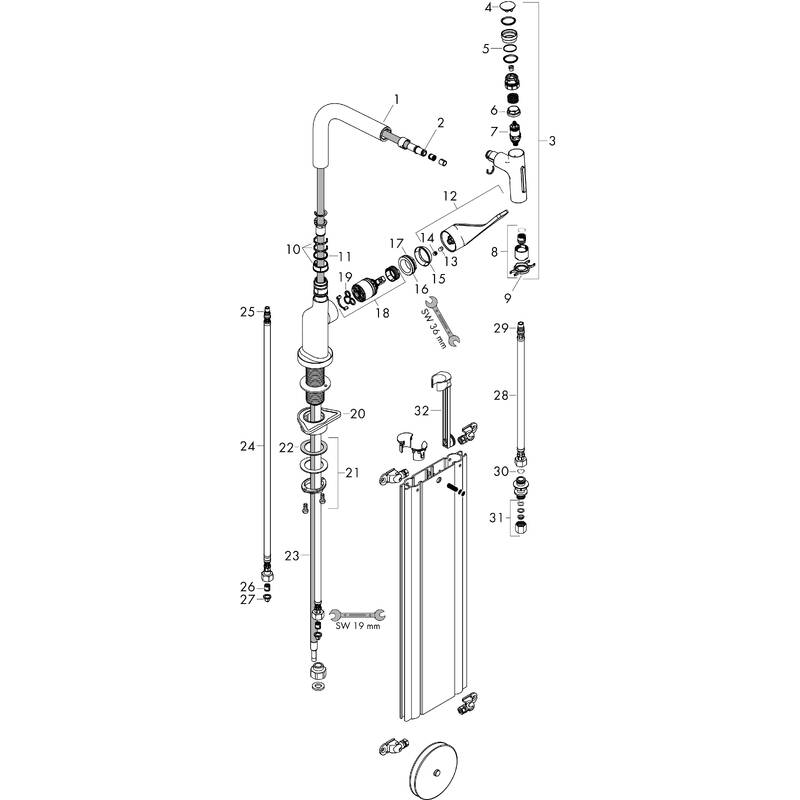

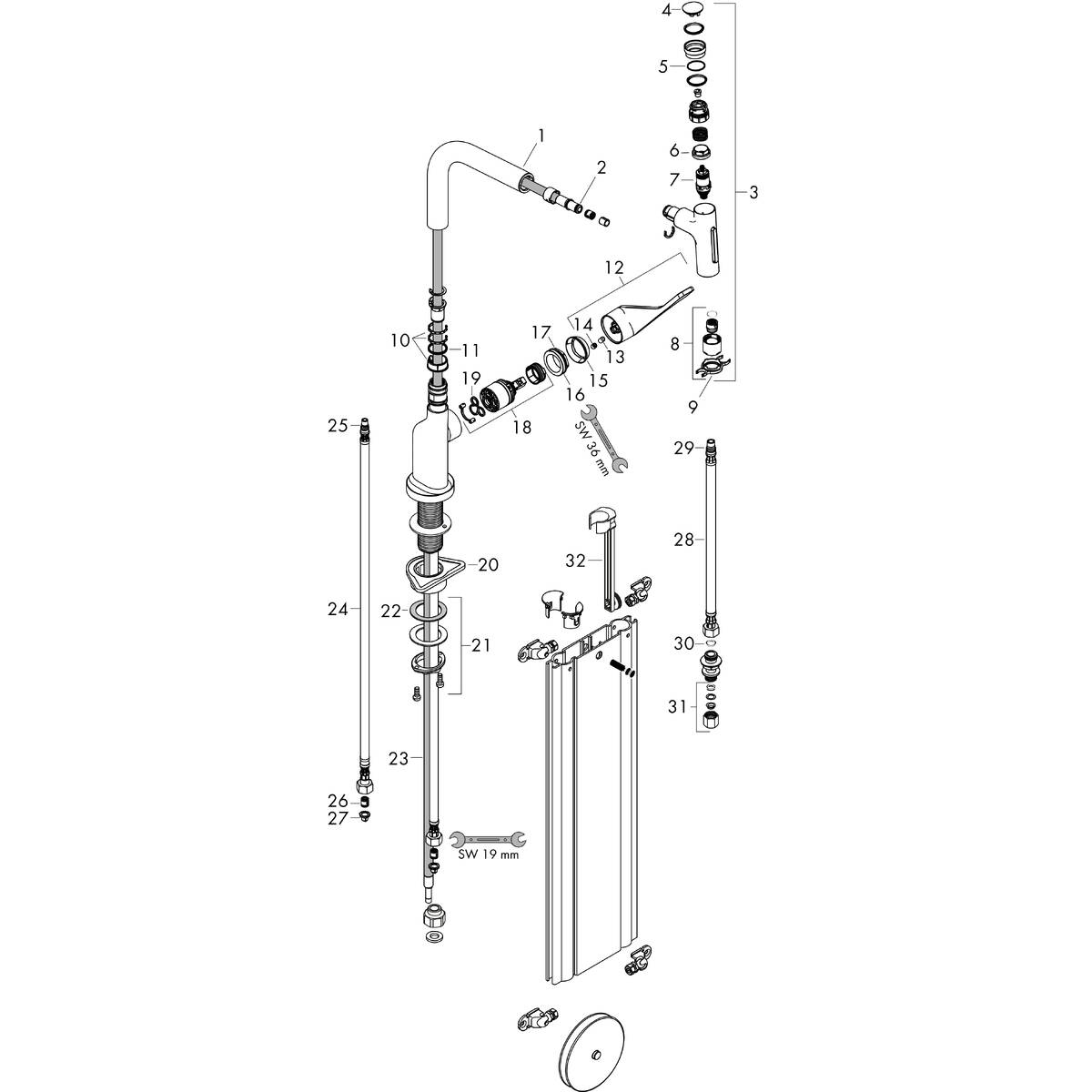

Spare parts for products 39862007
Spare parts for products 39862007
Item no. DescriptionArticle no.
a Grease90920000
1 spout cpl.92583000
2 O-ring 8x298112000
3 handspray93410000
4 cover92566880
5 O-Ring 14x1,598201000
6 nut92567000
7 shut off unit98463000
8 spray former93342000
9 service tool95910000
10 set of lever collars98365000
11 O-ring 21x2,598211000
12 39861000
13 hollow set screw M6x10 DIN 91696029000
14 screw cover96338000
15 flange98603000
16 nut96461000
17 O-Ring 32x298193000
18 cartridge, assy92730000
19 seal95008000
20 support97523000
21 fixing set (Ø 34)95049000
22 lever collar97548000
23 hose93191000
24 connection hose 900 mm M8x0,75 G3/895372000
25 O-ring 7x1,598422000
26 non return valve DW 1096456000
27 filter packing95291000
28 connection hose 450 mm M10x1 G3/896507000
29 O-ring 8x1,7597827000
30 seal98058000
31 squeezing connection96099000
32 extension set43333000
More information in the spare parts catalogue
