AXOR Citterio

Single lever kitchen mixer 230 with pull-out spout Eco

Single lever kitchen mixer 230 with pull-out spout Eco
Single lever kitchen mixer 230 with pull-out spout Eco
NEW
Change variant Single lever kitchen mixer 230 with pull-out spout Eco
Select a variant
Single lever kitchen mixer 260 with swivel spout Eco
Single lever kitchen mixer 230 with pull-out spout Eco
Finish Chrome

Art. no. 39864000

Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products Product added Product saved for 30 daysTo the Product Comparison The product could not be saved.
Please try again.
Find a specialist dealer Details
Special product features

Innovative technologies

More pleasure, more efficiency
AirPower
AirPower

More pleasure, more efficiency

Products with this shower technology combined water with air to pamper you with more voluminous, lighter and softer water droplets on your skin. For greater showering pleasure with water efficiency.

Excellent user comfort
ComfortZone
ComfortZone

Excellent user comfort

Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.

Save water, protect the climate
EcoSmart
EcoSmart

Save water, protect the climate

Hansgrohe mixers and showers, which are fitted with EcoSmart technology, require up to 60% less water than conventional products – without any loss of comfort. This means you can reduce your water and energy costs and conserve valuable resources.

Fast anti-limescale function
QuickClean
QuickClean

Fast anti-limescale function

Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon nubs make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.

Select: convenience at the touch of a button
Select_Kitchen
Select_Kitchen

Select: convenience at the touch of a button

The Select function can be used to stop and start the water flow at your kitchen tap conveniently at the touch of a button. For precise, ergonomic water control and easier housework.

Trust in highest quality

5 years warranty

Produktalternativen

Ähnliche Produkte

2-hole single lever kitchen mixer 240 with swivel spout Eco
AXOR Citterio

2-hole single lever kitchen mixer 240 with swivel spout Eco
2-hole single lever kitchen mixer 220 with pull-out spray Eco
AXOR Citterio

2-hole single lever kitchen mixer 220 with pull-out spray Eco
Single lever kitchen mixer 250 with pull-out spray Eco
AXOR Citterio

Single lever kitchen mixer 250 with pull-out spray Eco
Single lever kitchen mixer 250 with pull-out spray
AXOR Citterio

Single lever kitchen mixer 250 with pull-out spray
Single lever kitchen mixer 230 Semi-Pro
AXOR Citterio

Single lever kitchen mixer 230 Semi-Pro
Single lever kitchen mixer 230 Semi-Pro Eco
AXOR Citterio

Single lever kitchen mixer 230 Semi-Pro Eco
Single lever kitchen mixer 260 with swivel spout
AXOR Citterio

Single lever kitchen mixer 260 with swivel spout
Single lever kitchen mixer 260 with swivel spout Eco
AXOR Citterio

Single lever kitchen mixer 260 with swivel spout Eco
Single lever kitchen mixer Select 230 with swivel spout
AXOR Citterio

Single lever kitchen mixer Select 230 with swivel spout
Single lever kitchen mixer Select 230 with pull-out spout
AXOR Citterio

Single lever kitchen mixer Select 230 with pull-out spout
Single lever kitchen mixer Select 230 2jet with pull-out spray and sBox
AXOR Citterio

Single lever kitchen mixer Select 230 2jet with pull-out spray and sBox
Passende Produkte

Das könnte Ihnen auch gefallen

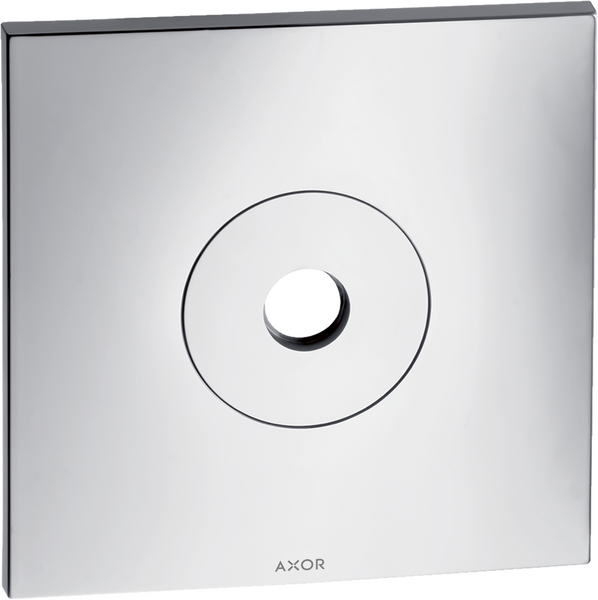

Wall plate square
AXOR Citterio

Wall plate square
Shower bar 0.90 m
AXOR Citterio

Shower bar 0.90 m
Shower set 0.90 m with hand shower 120 3jet
AXOR Citterio

Shower set 0.90 m with hand shower 120 3jet
Overhead shower 180 1jet
AXOR Citterio

Overhead shower 180 1jet
Single lever basin mixer 110 with pin handle and pop-up waste set
AXOR Citterio

Single lever basin mixer 110 with pin handle and pop-up waste set
Single lever basin mixer 80 with pin handle for hand washbasins with pop-up waste set
AXOR Citterio

Single lever basin mixer 80 with pin handle for hand washbasins with pop-up waste set
Single lever basin mixer 110 with pin handle and waste set
AXOR Citterio

Single lever basin mixer 110 with pin handle and waste set
Single lever basin mixer 280 with pin handle for wash bowls with pop-up waste set
AXOR Citterio

Single lever basin mixer 280 with pin handle for wash bowls with pop-up waste set
Single lever basin mixer 160 with pin handle and pop-up waste set
AXOR Citterio

Single lever basin mixer 160 with pin handle and pop-up waste set
Single lever basin mixer 160 with pin handle and waste set
AXOR Citterio

Single lever basin mixer 160 with pin handle and waste set
Single lever basin mixer 190 with pin handle and pop-up waste set
AXOR Citterio

Single lever basin mixer 190 with pin handle and pop-up waste set

Article Details

  • ComfortZone 230
  • swivel range adjustable in 2 steps to 110° or 150°
  • normal spray
  • Select button for a comfortable start/stop of the water flow
  • MagFit magnetic shower support
  • quick connect hose
  • connection dimension: DN15
  • maximum flow rate at 3 bar: 4.5 l/min
  • ceramic cartridge
  • connection type: G ⅜ connections
  • integrated non-return valve
  • not suitable for continuous flow water heaters
  • flow rate limited to maximum 6l/min

Downloads

Product data sheet (PDF)
Technical Drawings
Manuals

Scope of delivery

  • single lever kitchen mixer
  • connection hoses
  • fixing set
  • assembly instruction

Installation Information

Find plumber Assembly instruction (Mixer)  PDF, 9.4 MB
Measure Drawing

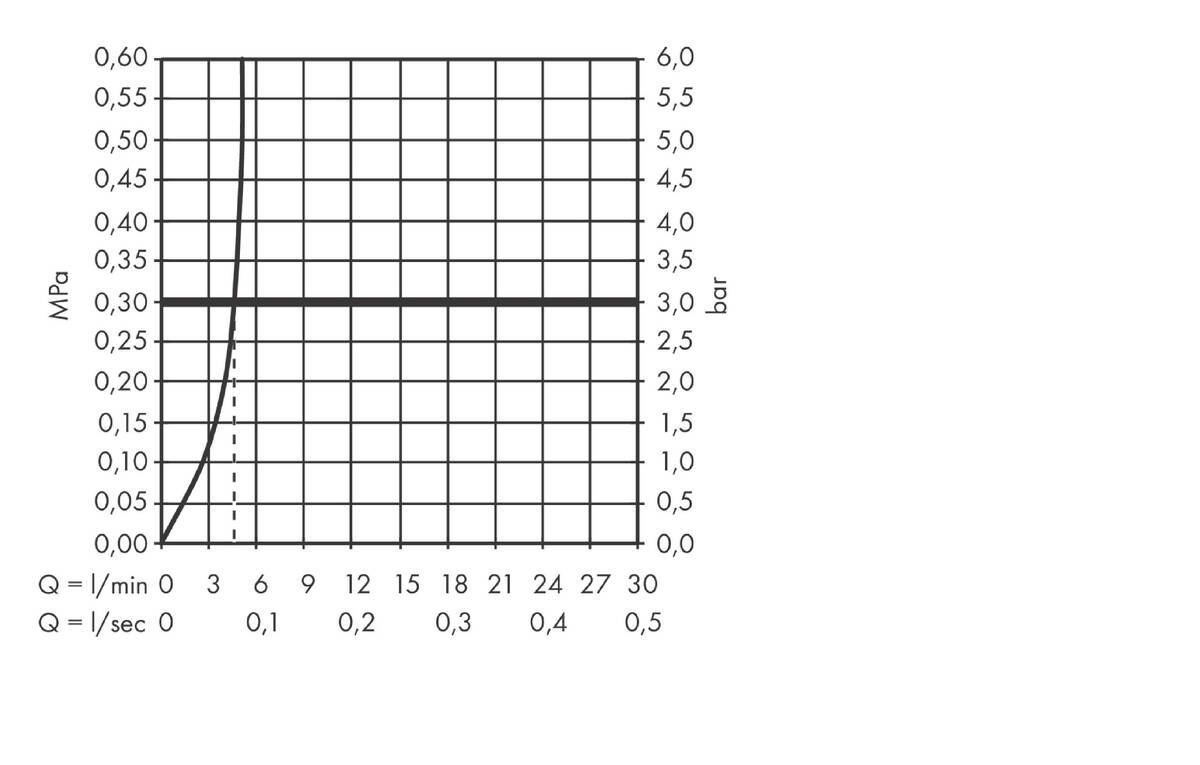

Flow Chart

Spare parts for build year 06/19

View older models in the spare parts catalogue

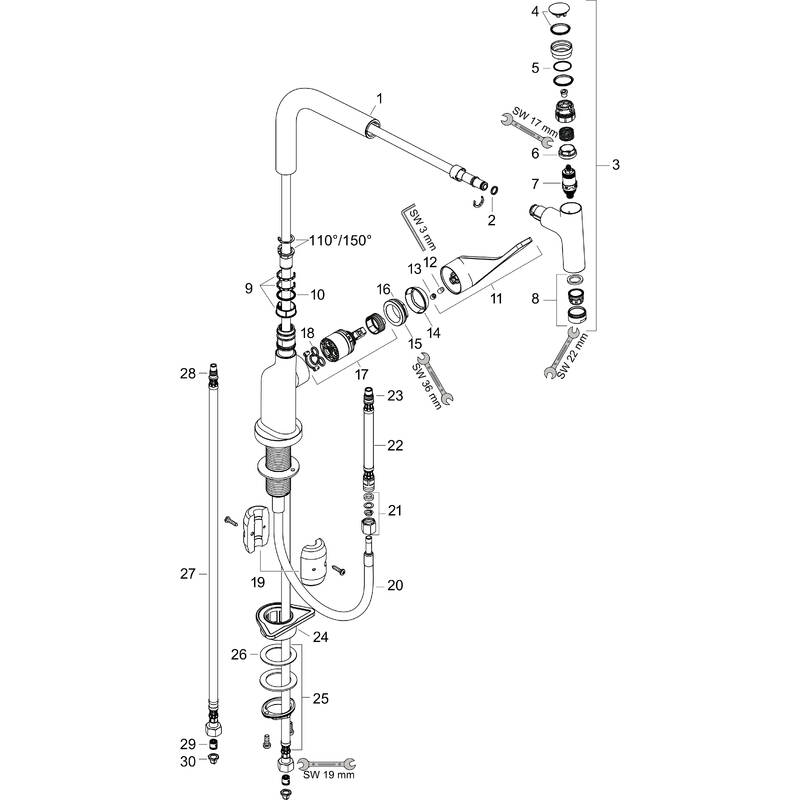

Spare parts for products 39864000
Spare parts for products 39864000
Item no. DescriptionArticle no.
1 spout cpl.92583000
2 O-ring 8x298112000
3 handspray92570000
4 cover92566000
5 O-ring 19x1,595962000
6 nut92567000
7 shut off unit98463000
8 aerator M24x1 (5 l/min)13185000
9 set of lever collars98365000
10 O-ring 21x2,598211000
11 handle39891000
12 hollow set screw M6x10 DIN 91696029000
13 screw cover96338000
14 flange98603000
15 nut96461000
16 O-Ring 32x298193000
17 cartridge, assy95646001
18 seal95008000
19 weight92500000
20 hose 1,50 m92569000
21 squeezing connection96099000
22 connection hose 600 mm M10x192568000
23 O-ring 8x1,7597827000
24 support97523000
25 fixing set (Ø 34)95049000
26 lever collar97548000
27 connection hose 900 mm M8x0,75 G3/895372000
28 O-ring 7x1,598422000
29 non return valve DW 1096456000
30 filter packing95291000
More information in the spare parts catalogue
